Electric locks and strikes

V97 with push button - for outward opening

These V97 electric locks with push button were specially designed for inside and outside doors and pedestrian gates that open outwards. This is necessary when safety regulations foresee an outward-opening escape route in the event of an emergency. The characteristics and finish make them ideal for metal doors and gates, even in surroundings subject to considerable temperature ranges.

  • Installation:

    horizontal.

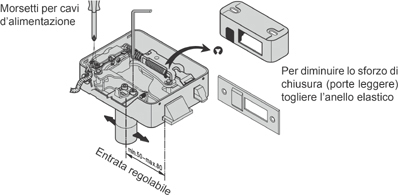

  • Backset:

    adjustable from 50 to 80 mm, with a simple operation using the Allen key provided.

  • Double replaceable coil:

    which distributes the load uniformly and ensures a long working life.

  • Voltage:

    standard 12V AC (on request 12V DC; 24V AC or DC).

  • Case:

    one-piece galvanized and painted steel.

  • Cover:

    galvanized and painted steel.

  • Handle:

    nylon, and nylon cylinder/push button ring nut.

  • Latch:

    solid brass, self-locking with the device locked.

  • Ejector:

    nickel-plated steel, separate from the latch to ensure the correct working of the lock even if there is vertical adjustment between the lock and the striker (caused by weather changes).

  • Push button:

    brass.

  • Cylinders:

    solid brass, fixed internal, loose external.

  • Keys:

    supplied with 3 Viro profile nickel plated brass keys.

    __logo__un__  Versions available with universal profile keys to replace the most common locks already installed with no need to withdraw keys in use. Universal profile Cylinders can be re-keyed with keying kit

  • Strikers:
    • inox stainless steel plate, with nylon guide for installation on walled door jambs;
    • standard, steel, for narrow frames;
    • both strikers are specifically designed for outward opening doors and gates.
  • Mechanism:
    • if the key is turned from the inside, it is possible to: block or activate the button function; block or activate the "dogging device" function (possibility to keep the lock always open, if required);
    • brass pins;
    • mushroom brass counterpins, pick-resistant;
    • phosphor bronze pin springs.
  • Supplied with:

    inox stainless steel strikers, nylon guide, brass cylinder ring nut, Allen key for backset adjustment and fixing screws.

  • Packaging:

    single box.

  • On request:
    • galvanized steel roof-plate (item 8992.0600).

    __logo__antracite_catalogo__  Available anthracite metallic painted versions, add the required color code .469 to the item code

  • All special executions are possible.

V97 with push button - for outward opening

Item

Description

Adjustable backset

Lock dimensions

Internal cylinder (fixed)

External cylinder (fixed)

Unit weight

No.

mm

E

mm

ITEM NO.

ITEM NO.

g

__logo__un____logo__antracite_catalogo__  8973.712.1right50 ÷ 80127,5 x 103,57917121630
__logo__un____logo__antracite_catalogo__  8973.712.2left50 ÷ 80127,5 x 103,57917121630
__logo__un__ For versions with universal profile key the item code should be followed by .UN
