Padlocks and accessories

UNI EN 12320

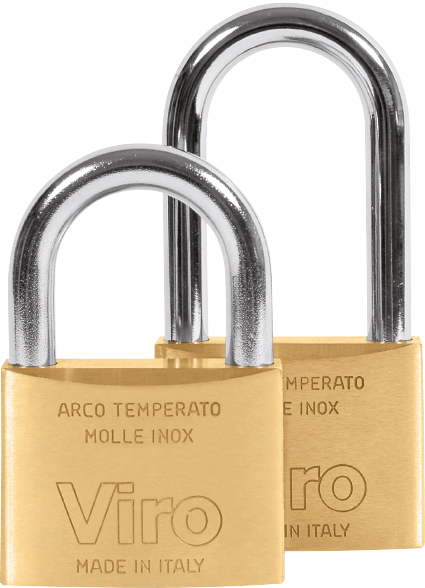

Rectangular padlocks

The classic padlock, featuring Viro quality, made from materials that guarantee a long working life and that can meet every security requirement.

Body:
solid satin brass with rounded anti-abrasion edges.
Shackle:
case hardened and tempered steel (except items 298-299-308) for high resistance to attack; copper, nickel and chrome-plated for high corrosion resistance.
Keys:
supplied with 2 Viro profile nickel plated brass keys.
Versions available with patented profile keys (form trademark) which can only be duplicated by Viro (.PB profile) or versions which can only be duplicated by Viro Authorized Centres (.PV profile).
Mechanism:
- spring-loaded dead-bolt;
- key removable in locked and unlocked position;
- brass pins;
- mushroom brass counterpins, pick-resistant;
- 2 spring-loaded brass latches (except items 298-299-308);
- phosphor bronze pin springs;
- inox stainless steel latch springs;
- inox stainless steel shackle spring.
Packaging:
Personalized single box.
Special visual packs.
All special executions are possible.
Keying kits can be supplied.

Item	Body dimensions	Shackle clearance	Shackle diameter	Keys	Unit weight	Pcs. per pack
No.	mm A x B x E	mm C - F	mm D	Item No.	g	No.
298	20 x 20 x 10	11,5 - 9,5	3,5	010	40	12
299	25 x 25 x 12	14 - 13,5	4	010	63	12
301	30 x 27 x 13	15 - 15,7	5	011	97	12
302	40 x 32 x 15	20 - 23	6	013	165	12
303	50 x 40 x 17	28 - 30	8	015	290	6
304	60 x 46 x 20	35 - 35	10	015	460	6
305	70 x 51 x 23	42 - 38	12	015	695	6

Item	Body dimensions	Shackle clearance	Shackle diameter	Keys	Unit weight	Pcs. per pack
No.	mm A x B x E	mm C - F	mm D	Item No.	g	No.
308	20 x 19 x 11	22 - 11	3,5	010	43	12
311	30 x 27 x 13	30 - 15,7	5	011	105	12
311.40	30 x 27 x 13	40 - 15,7	5	011	110	12
311.64	30 x 27 x 13	64 - 15,7	5	011	115	12
312	40 x 32 x 15	40 - 23	6	013	170	12
312.64	40 x 32 x 15	64 - 23	6	013	190	12
312.90	40 x 32 x 15	90 - 23	6	013	200	12
313	50 x 40 x 17	48 - 30	8	015	315	6
313.64	50 x 40 x 17	64 - 30	8	015	325	6
313.90	50 x 40 x 17	90 - 30	8	015	345	6
314.64	60 x 46 x 20	64 - 35	10	015	500	6
314.90	60 x 46 x 20	90 - 35	10	015	540	6
315.90	70 x 51 x 23	90 - 38	12	015	765	6

__logo__pvpb__ For versions with patented profile keys the item code should be followed by: .PV or .PB

__logo__pvpb_com-spec__ Items that can be ordered with .PV or .PB profiles, handled as a special order.
