MORTISE DOOR LOCKS AND CYLINDERS

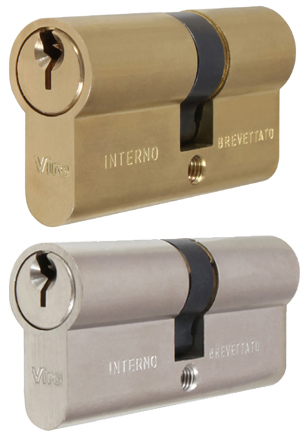

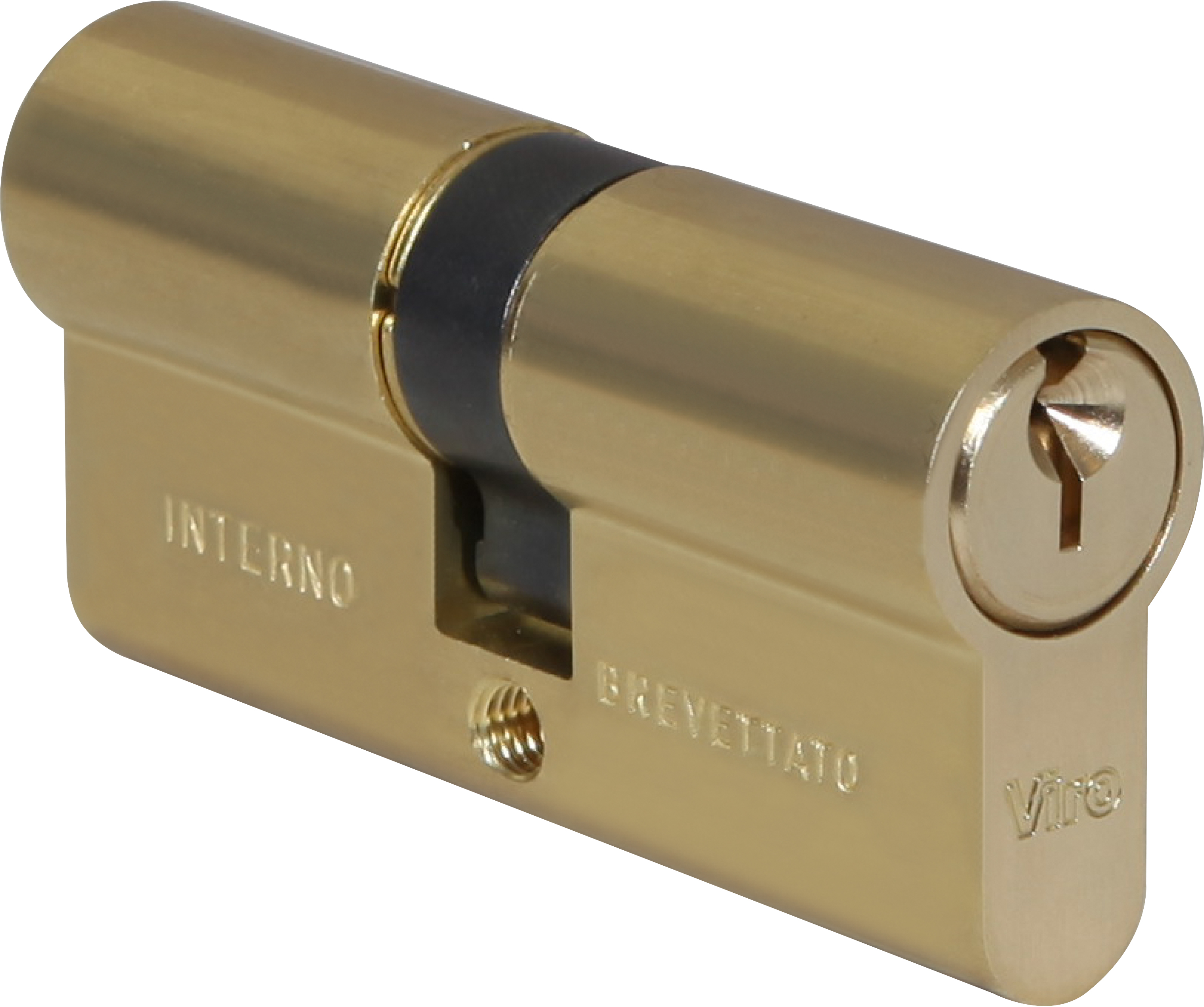

700 series - Double cylinders - With european profile with emergency opening - With Viro profile key

  • Body:

    solid extruded, pickled brass.

  • Plug:

    brass, 4 or 5 pins.

  • Keys:

    supplied with 3 Viro profile nickel plated brass keys.

    __logo__pvpb_chiave__  Versions available with patented profile keys (form trademark) which can only be duplicated by Viro (.PB profile) or versions which can be duplicated only by Viro authorized centres (.PV profile).

  • Mechanism:
    • the emergency function allows the cylinder to be opened from the outside even if there is a key inserted on the inside;
    • by inverting the inside - outside insertion, the cylinders work like normal cylinders (without the emergency opening function);
    • universal 0° cam;
    • brass pins;
    • mushroom brass counterpins, pick-resistant;
    • phosphor bronze pin springs;
    • brass retaining rings.
  • Supplied with:

    metric-thread fixing screw.

  • Packaging:

    single packs, in 10 piece boxes.

  • On request:

    nickel-plated versions and/or 30° DIN cam.

  • Special visual packs.

    All special executions are possible.

    Keying kits can be supplied.

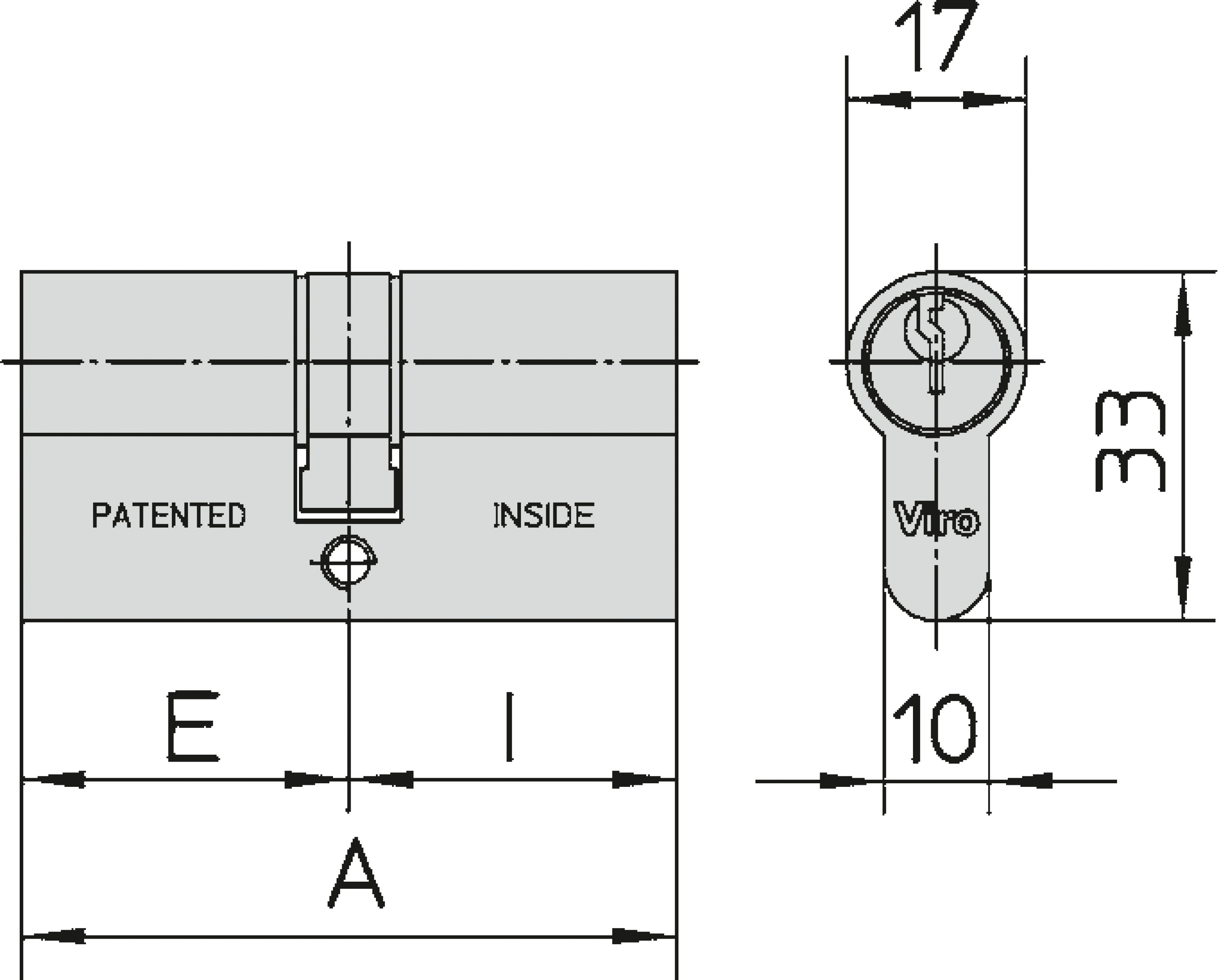

E = outside
I = inside
  Zoom
700 RANGE - Double cylinders
Item

Total lenghtCam position

pin plug

KeysUnit weightPcs. per pack

No.

mm

A

mm

E-I

No.

ITEM NO.

g

No.

__logo__pvpb__  7215427 - 27401719010
__logo__pvpb__  7226027 - 33401721010
  1.7226033 - 27401721010
__logo__pvpb__  7276231 - 31501522010
  722.27.376427 - 37401722510
__logo__pvpb__  7236633 - 33501523010
__logo__pvpb__  7247027 - 43401724010
  1.7247043 - 27401724010
__logo__pvpb__  751.257030 - 40401724010
__logo__pvpb__  7257437 - 37501525510
  752.257530 - 45401725510
__logo__pvpb__  7268027 - 53401727510
__logo__pvpb__  753.308035 - 45501527510
__logo__pvpb__  753.358040 - 40501527510
  755.309035 - 55501530010
  755.359040 - 50501530010
  755.409045 - 45501530010
  757.5510060 - 40501534010
  757.6010065 - 35501534010

__logo__pvpb__ For versions with patented profile keys the item code should be followed by: .PV or .PB
