Safes and safety cabinets



UNI EN 14450

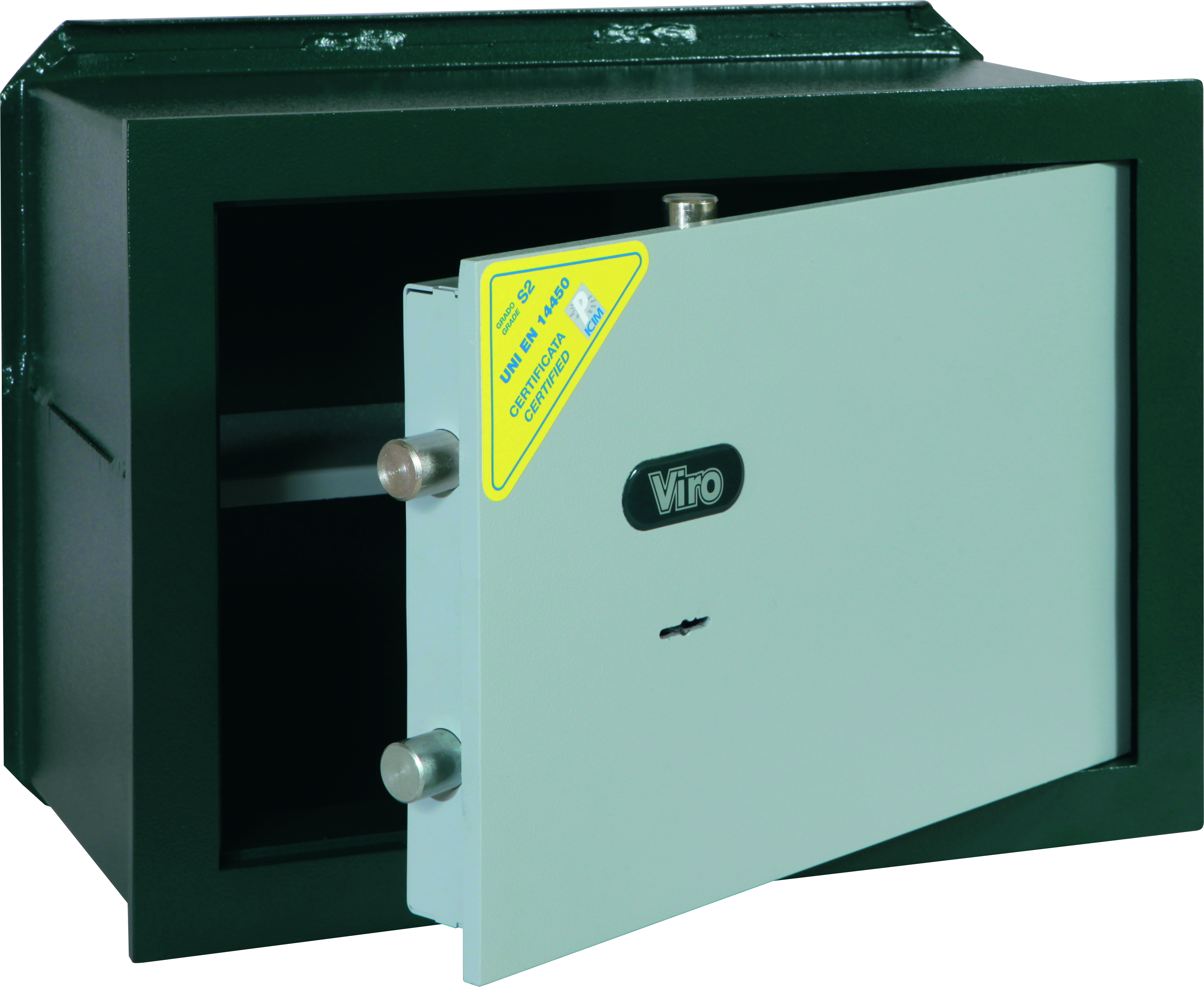

PRIVACY - Wall version - mechanical S2 grade certified lock

  • Case:

    2 mm thick steel.

  • Fins:

    steel on all rear sides ("L" shaped folded fins on both horizontal sides) of the case, to increase resistance to attack.

  • Frame:

    10 mm thick steel. Specially rebated reinforced steel around the entire internal frame perimeter to increase resistance to attack. The frame forms a one-piece body with the case, thanks to the sturdy welding around the entire perimeter.

  • Door:

    10 mm thick steel, banded on the hinge side to increase pull-resistance. Minimum space between door and frame to prevent insertion of burglary tools.

  • Hinges:

    20 mm side reinforced steel, fixed with Ø 8 mm steel pins.

  • Dead-bolts:

    Ø 20 mm nickel-plated steel, horizontal and vertical, rotating and resistant to attack.

  • Keys:

    supplied with 2 nickel-plated brass double bit keys (item 1.077).

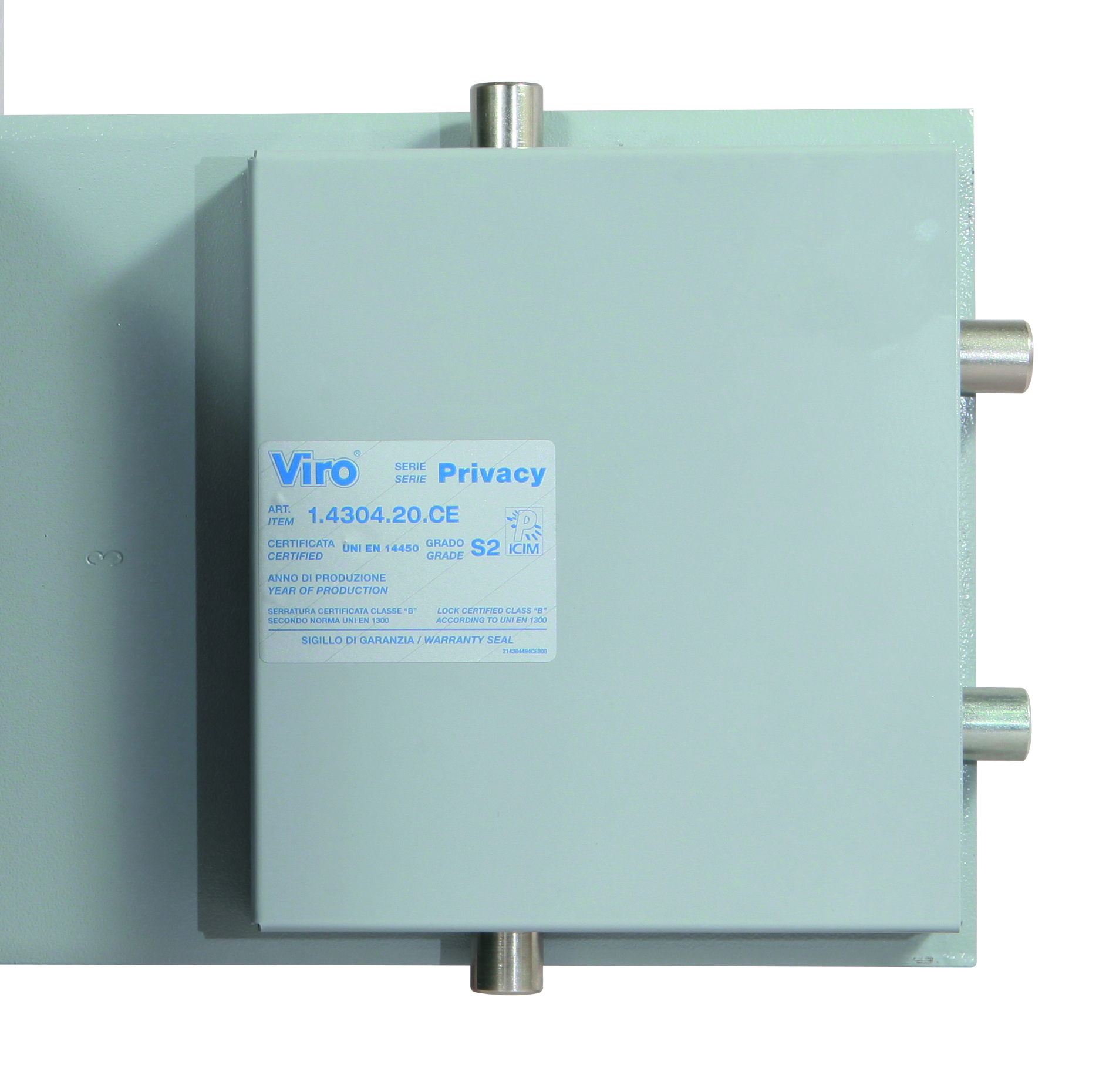

  • Mechanism:
    • keys removable only when the door is closed;
    • high-security triple expansion 8 gorges steel lock, complies with class B of the UNI EN 1300 standard, i.e. equipped with dummy anti-tampering notches and with a minimum of 100,000 combinations;
    • 2 mm thick manganese plate protecting the lock and the horizontal dead-bolts.
  • Supplied with:

    1 mm thick painted steel removable shelf.

  • Packaging:

    Personalized single box.

  • On request:

     (photos and details of the accessories):

    • inside lighting module (item 1.4383.0312) that lights up when the door is opened, for easy identification of small items inside the safe.
Horizontal wall version with mechanical S2 grade certified lock



Item

External dimensions

Useful internal dimensions

Door clearance

Bottom dimensions

Thickness

Frame

Thickness

Door

Thickness

Case

Dead-bolts

Horiz.

Dead-bolts

Vert.

Unit weight



No.

mm

height x width x depth

mm

height x width x depth

mm

height x width

mm

height x width

mm

mm

mm

No.

No.

kg

   1.4304.20.CE300 x 420 x 200282 x 402 x 158240 x 360328 x 440101022222,8
