7500 Series EXTERNAL CYLINDER

7600 Series ERGONOMIC BRASS-PLATED INSIDE THUMB TURN

UNI EN 12209

Rim door locks

Viro rim door locks are suitable for inside and outside wooden and metal doors, and ensure a long life.

FEATURES

Case:
one-piece painted steel.Viro hologram to distinguish it from possible imitations.
Cover:
rear cover galvanized and passivated steel.
Latch and dead-bolt:
Solid brass. Latch easily reversible, key-operated from the outside, dogging device operated from the inside. Deadbolt with double or triple throw.
Cylinders:

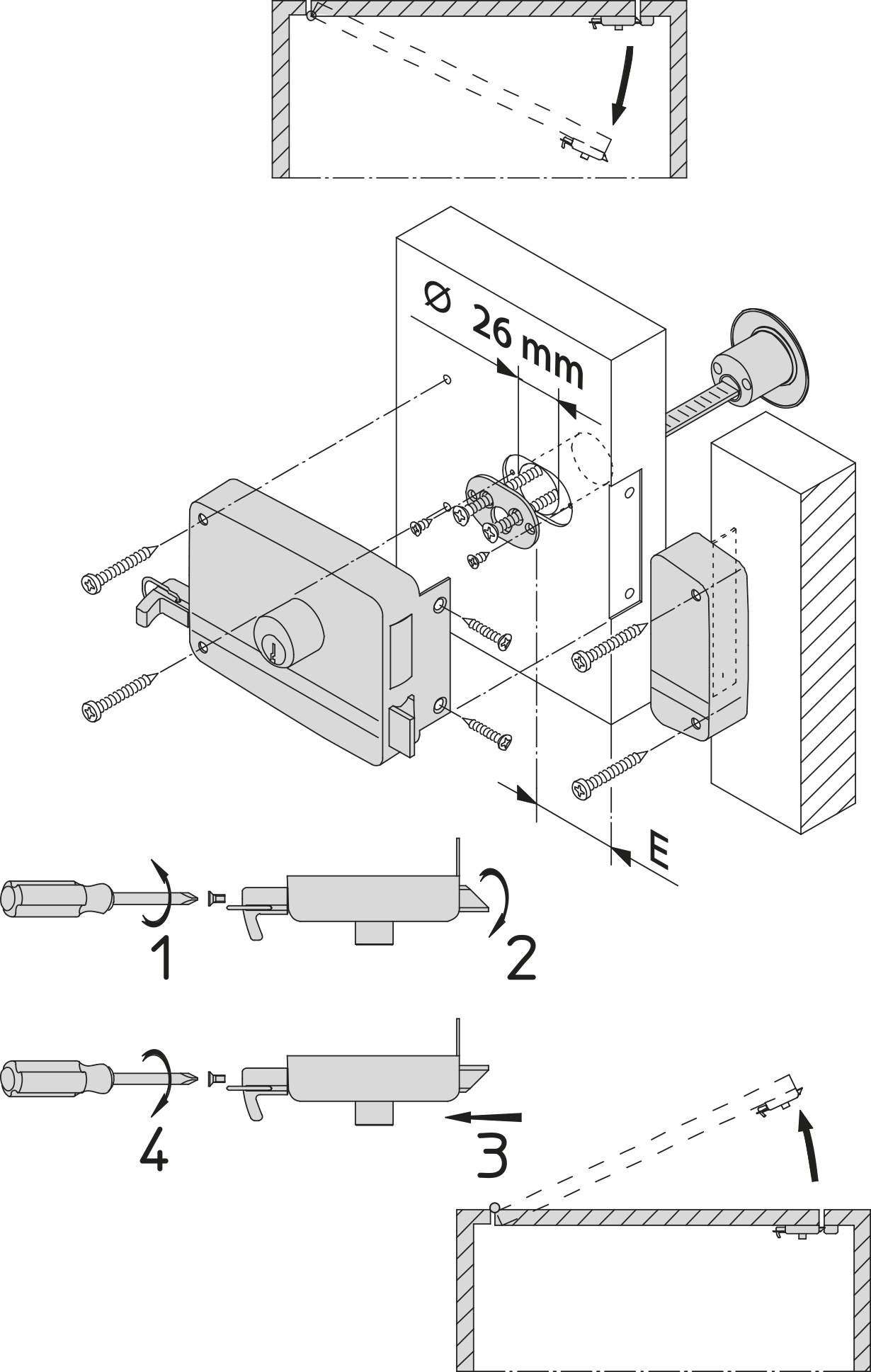

solid brass, fixed internal, fixed (item 714) or loose (item 712) external.
Keys:
supplied with 3 Viro profile nickel plated brass keys.
On request, Versions available with universal profile keys to replace the most common locks already installed with no need to withdraw keys in use. Universal profile Cylinders can be re-keyed with keying kit
Thumb turn:
(only for the 7600 series) ergonomic, brass-plated, from the inner side.
Mechanism:
- brass pins;
- mushroom brass counterpins, pick-resistant;
- phosphor bronze pin springs.
Supplied with:

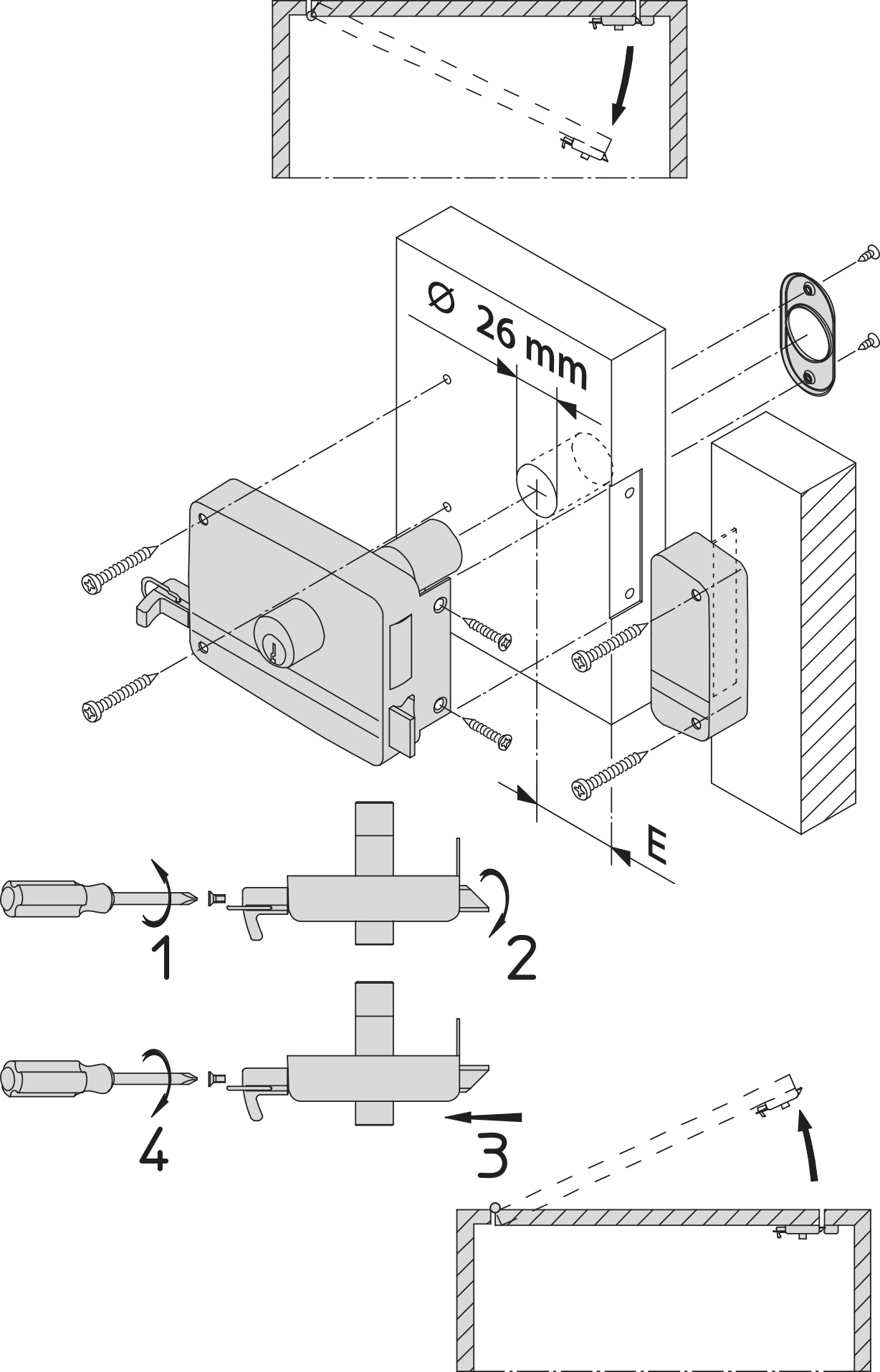

painted steel striker, oval brass escutcheon (for versions with fixed external cylinder– item 714) or brass cylinder ring nut (for versions with loose external cylinder – item 712) and fixing screws.
Packaging:
single box.
All special executions are possible for the cylinder.

Data sheet
Applications' exemples

7500 SERIES - Latch and dead-bolt - Double cylinder - Double Throw

Item	Backset	Case dimensions	Throw projection	Keys	Unit weight (without cylinder)	Pcs. per pack
No.	mm E	mm A x B	mm C	Item No.	g	No.
1.7501	40	80 x 92	24	015	655	1
1.7502	50	100 x 92	24	015	710	1
1.7503	60	120 x 92	24	015	770	1
1.7504	70	140 x 92	24	015	835	1

__logo__un__ For versions with universal profile key the item code should be followed by .UN

7510 SERIES - Latch and dead-bolt - Double cylinder - Triple Throw

Item	Backset	Case dimensions	Throw projection	Keys	Unit weight (without cylinder)	Pcs. per pack
No.	mm E	mm A x B	mm C	Item No.	g	No.
1.7512	50	100 x 92	35	015	755	1
1.7513	60	120 x 92	35	015	815	1
1.7514	70	140 x 92	35	015	880	1

__logo__esaurimento__ While stocks last

Add the required cylinder code (.712 = loose external cylinder or .714 = fixed external cylinder) and the version (.1 = right .2 = left) after the item code.

e.g. 1.7503.712.1 = Rim door lock, backset 60 mm with loose external cylinder, right version.

7600 SERIES - Latch and deadbolt - Inner thumb turn, detached outer cylinder - 2 throws

Item	Backset	Case dimensions	Throw projection	Keys	Unit weight (without cylinder)	Pcs. per pack
No.	mm E	mm A x B	mm C	Item No.	g	No.
1.7601.712	40	80 x 92	24	015	645	1
1.7602.712	50	100 x 92	24	015	700	1
1.7603.712	60	120 x 92	24	015	760	1
1.7604.712	70	140 x 92	24	015	825	1

__logo__un__ For versions with universal profile key the item code should be followed by .UN

The item code should be followed by the code for the required version (.1 = right or .2 = left).

E.g. 1.7603.712.2 = Rim door lock with knob, backset 60 mm with detached outer cylinder, left version.
