MORTISE DOOR LOCKS AND CYLINDERS

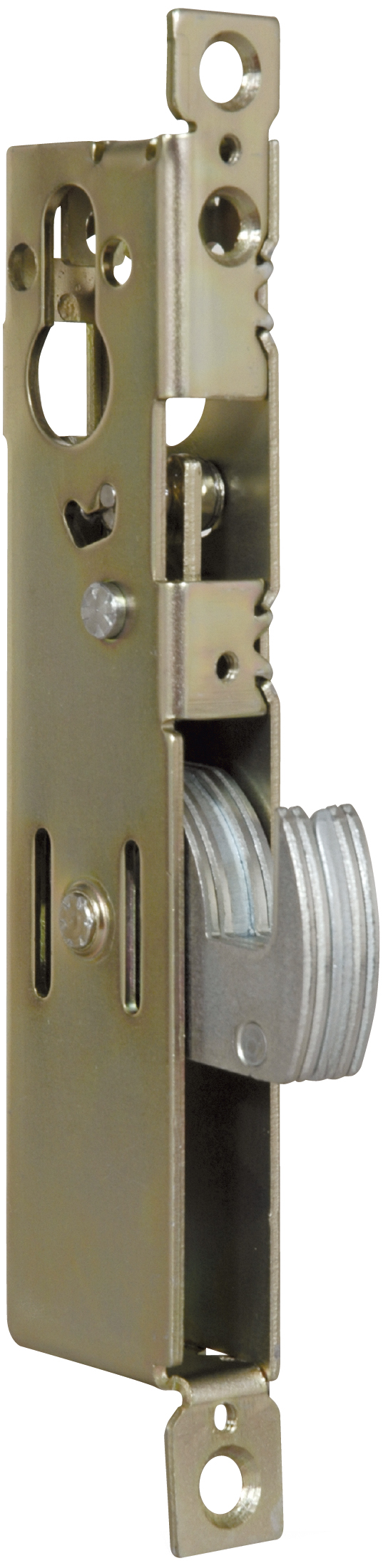

Locks for heavy aluminium frames with swing hook-bolt

  • Frame:

    3 mm thick galvanized passivated steel.

  • Hookbolt:

    securely riveted laminated steel.

  • Mechanism:
    • suitable for profile cylinders for sliding and hinged doors.
  • Coverplate:

    not supplied with the lock, but can be ordered separately.

  • Supplied with:

    fixing screws for the lock and fixing screw for the cylinder.

  • Packaging:

    single box.

Locks for heavy aluminium frames with swing hook-bolt FOR HINGED DOORS

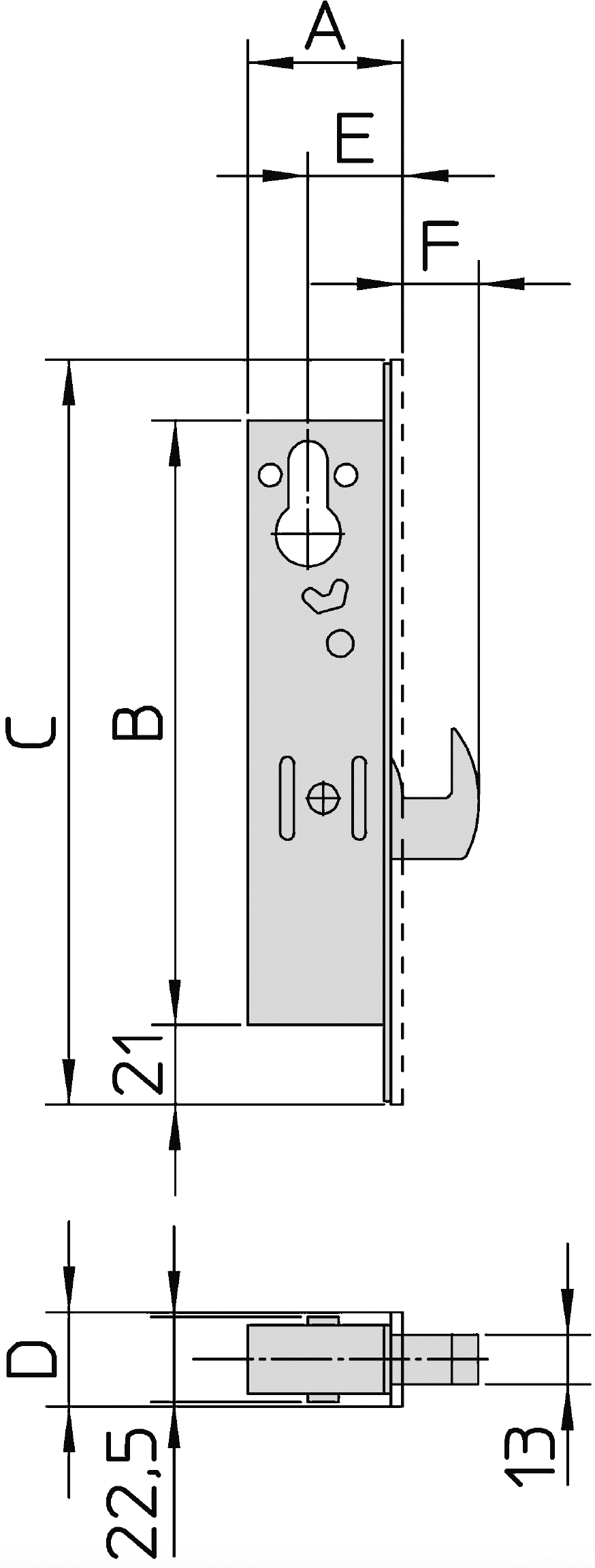

Item

Backset

Case dimensions

Front plate

Hook projection

Unit weight (without cylinder)

Pcs. per pack

No.

mm

E

mm

A x B

mm

C X D

mm

F

g

No.

  85472541 x 160197 x 2520,24101
  85483046 x 160197 x 2520,24401
